Benefits of Selective Soldering

  • Perla Irish
  • May 19, 2021
Total
1
Shares
0
0
1
0
0
Table of Contents Hide
    1. Fluxing
    2. Preheating
    3. Soldering
  1. When Selective Soldering is the Most Efficient
    1. Bottom Line

Have you ever tried to remove an old screw, only to discover that its head is square-shaped and not slotted? It can be pretty frustrating, especially if you don’t have the right driver.

When assembling PCB, soldering through-hole elements on a printed circuit board (PCB) containing surface-mount parts can be a common need.

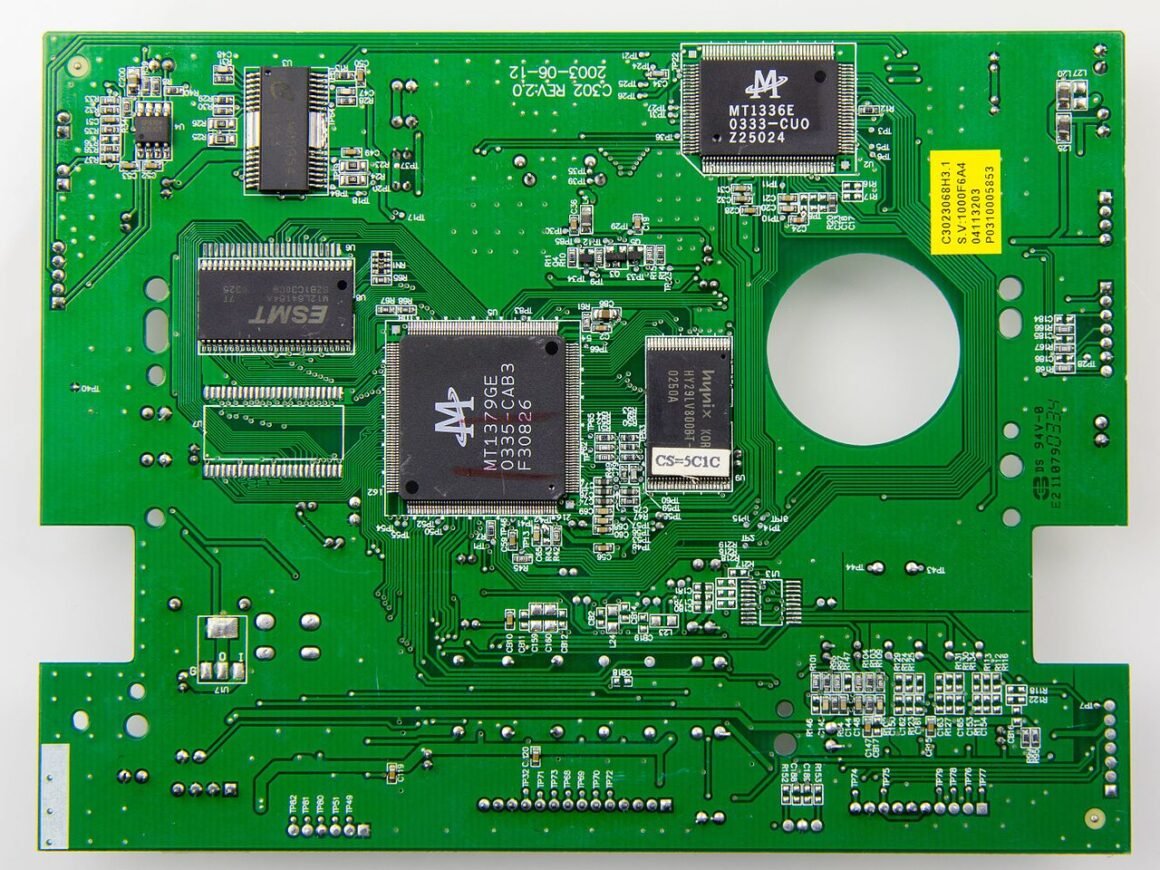

image - Benefits of Selective Soldering
Benefits of Selective Soldering

PCB assembly services provide automated selective soldering to supply efficient and also reliable results on mixed-technology boards.

This sort of soldering is specifically beneficial when you cannot implement traditional wave soldering due to the board layout complexity or on higher-volume assemblies where hand soldering may not be efficient.

The selective solder tool contains preheated and spray change areas to prepare the PCB for soldering.

It also consists of a nozzle that flows solder on a particular element lead. It is configured to exactly solder only through-hole components and not the entire circuit board.

Automated selective soldering is an essentially flexible process that creates dependable solder joints without heating components excessively.

You can configure these devices to make sure solder joints meet the IPC market Class 2 and Course 3 requirements.

However, some devices consist of both leaded and lead-free solder pots. This adaptability makes them usable in a wide range of jobs.

Selective soldering consists of mainly 3 phases:

Fluxing

involves applying flux on PCBs to eliminate the oxidized metal layer, on the area you intend to apply the solder, and sealing out any excess air to stop re-oxidation.

Preheating

Once you apply the flux, the next step is to preheat the PCB

Soldering

involves applying solder using variable and programmable solder nozzles via a fountain to particular board components in a constant stream.

The devices are separately configured for each soldering factor to control volume flux and establish soldering time for each PCB assembly circumstance, ensuring a much more dependable solder joint.

The degree of statistical process control for through-hole parts improves considerably when using selective soldering devices.

Selective soldering is ideal for higher-volume through-hole setup and for tasks with tight spacing between through-hole elements.

The nozzles can reach in between two through-hole leads without unnecessarily filling the whole area with solder.

A wider solder nozzle will efficiently manage the scenario If there is a dense focus of through-hole leads.
